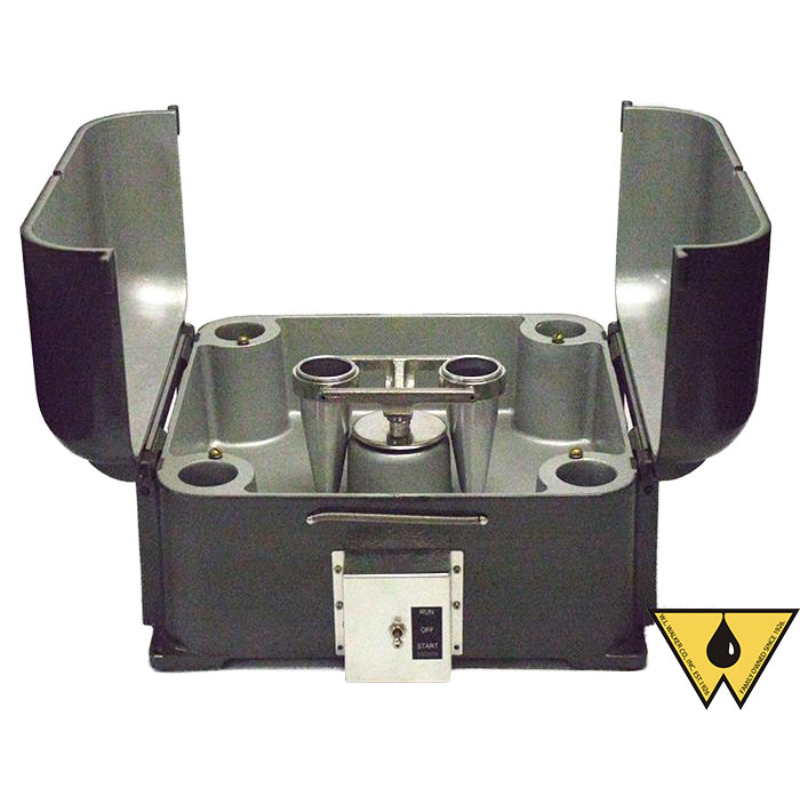

CENTRIFUGE WATER HEATED 12VDC 2-PLACE FOR SHORT CONE

Code: 18021

Walker water heated centrifuges incoroporate a very sound and simple principle. The wasted energy in the form of hot water from the vehicle's cooling system is circulated through a water tight section in the base of the machine. The heat is absorbed by the aluminum casting and in a very short time all parts of the unit are hot. The only electrical energy needed is that used to swing the head and tubes during the centrifuging period. There are four short cone preheater pockets inside the centrifuge. The short cone head and two short cone shields are included in the centrifuge. This unit will meet the requirements of the API MPMS Chapter 10.4 "Determination of Water and Sediment in Crude Oil by the Centrifuge Method (Field Procedure)."

18051 - Motor, 12 Volt D.C.
18055 - Rheostat, 12 Volt (Legacy Units)
18073 - Head, 2-Place, for Short Cone Tube
18081 - Shield, for 6" Short ConeTube with Cushion & Liner
1808102 - Cushion, for 18081 Shield
1808104 - Liner, for 18081 Shield
1805302 - Soft Start Switch 12 Volt

US$2,768.04

US$2,546.60

EA (1)

Features

Features

Heating Principle:
Utilizes waste heat from the vehicle’s cooling system by circulating hot water through a sealed chamber in the centrifuge base
Efficient Heat Transfer:
Aluminum casting absorbs and distributes heat rapidly, bringing all internal components to operating temperature in a short time
Energy Efficiency:
Minimizes electrical demand by using thermal energy from the vehicle, requiring power only for rotating the centrifuge head and tubes
Integrated Preheater:
Equipped with four short cone preheater pockets located within the centrifuge for convenient sample preparation
Included Components:
Supplied with a short cone centrifuge head and two short cone shields for immediate field operation
Industry Compliance:
Meets API MPMS Chapter 10.4 requirements for determination of water and sediment in crude oil by the centrifuge method (field procedure)

Specifications

Specifications

Motor (Part #18051):
12 volt D.C. motor designed for reliable operation in mobile and field centrifuge applications
Rheostat (Part #18055):
12 volt rheostat for variable speed control, compatible with legacy centrifuge units
Head (Part #18073):
2-place centrifuge head designed for use with short cone tubes
Shield Assembly (Part #18081):
Shield for 6" short cone tube, supplied with integrated cushion and liner for protection and stability
Cushion (Part #1808102):
Replacement cushion component designed for use with Part #18081 shield
Liner (Part #1808104):
Protective liner component for Part #18081 shield to enhance durability and tube support
Soft Start Switch (Part #1805302):
12 volt soft start switch designed to reduce startup stress and improve equipment longevity
