THIS UNIT HAS NO ELECTRICAL PARTS THAT WOULD PRESENT A SPARKING HAZARD.

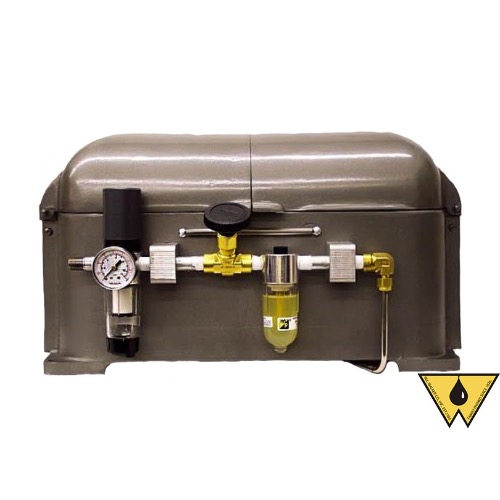

The filter-regulator gives the operator the option to preset the pressure to the air motor, which controls the speed of the motor. The speed of the air motor can be checked by using a hand held tachometer inserted through an access hole in the lids. The shut-off valve controls the unit and the adjustable in-line oiler lubricates the air motor while in use. The air filter-regulator will reduce the air supply pressure down to the 60 PSI to 90 PSI level to produce the required RPM. Air consumption will range from 3.7 CFM to 7.2 CFM as determined by the use of a two-place or a four-place (see 18426) head.
If a heater is needed the centrifuge could be attached to a vehicle's cooling system or please inquire about the possible use of a thermo cycle heater.
Part # Description
18073 Head, for 2-Place Short Cone Tube
18081 Shield, for 6" Short Cone Tube with Cushion & Liner
1808102 Plug, for 18081 Shield
1808104 Liner, Felt for 18081 Shield
