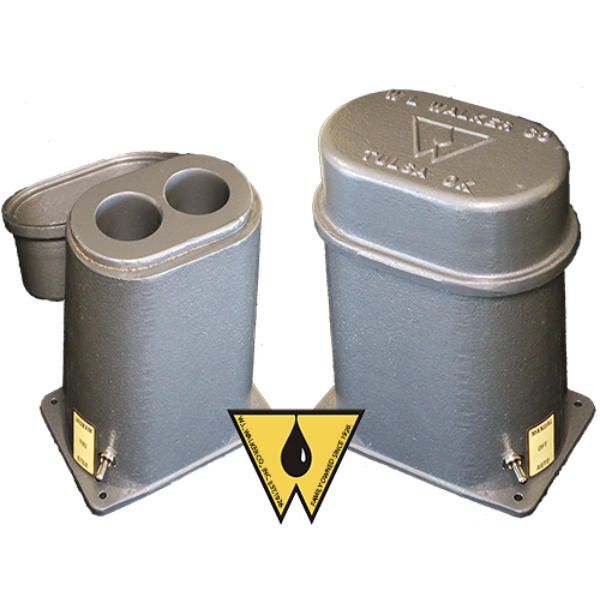

HEATER SAMPLE OIL 12V DC 2-PLACE SHORT CONE WLW

Code: 28460

VOLTAGE 12 D.C.  TYPE & NUMBER OF HOLDERS 2-place for 100ml short cone

The short cone tube is the one specified in API's Manual of Petroleum Measurement Chapter 10.4. All parts are cast aluminum to give durability and long life in rugged field conditions. The 12 volt unit draws 4 amperes, and has a three-position switch with Manual-ON, OFF, and Thermoswitch-ON. The internal thermoswitch allows the unit to heat rapidly and then maintains constant temperature. This control system prevents excess heat from vaporizing the moisture which could give a false Sediment and Water reading. For higher temperature requirements (such as high wax contents), use Manual-ON . The 115 Volt unit has a simple ON/OFF switch, and has no thermostat control.

The short cone tube is the one specified in API's Manual of Petroleum Measurement Chapter 10.4. All parts are cast aluminum to give durability and long life in rugged field conditions. The 12 volt unit draws 4 amperes, and has a three-position switch with Manual-ON, OFF, and Thermoswitch-ON. The internal thermoswitch allows the unit to heat rapidly and then maintains constant temperature. This control system prevents excess heat from vaporizing the moisture which could give a false Sediment and Water reading. For higher temperature requirements (such as high wax contents), use Manual-ON . The 115 Volt unit has a simple ON/OFF switch, and has no thermostat control.

Please Log in to View Price

EA (1)

Features

Features

Voltage:
12 V DC
Tube Capacity:
2-place holder for 100 ml short cone tubes.
Standard:
Short cone tubes specified in API Manual of Petroleum Measurement Chapter 10.4.
Construction:
All parts are cast aluminum for durability and long service life in field conditions.
Power Consumption:
12 V unit draws approximately 4 amperes.
Controls (12 V Unit):
Three-position switch: Manual ON, OFF, and Thermoswitch ON.
Heating System:
Internal thermoswitch provides rapid heat-up and maintains constant temperature.
Accuracy Note:
Controlled heating prevents excess heat that could vaporize moisture and affect sediment and water readings.
High Temperature Operation:
Manual ON setting is recommended for higher temperature requirements such as high wax content samples.
115 V Unit:
Equipped with a simple ON/OFF switch and does not include thermostat control.
