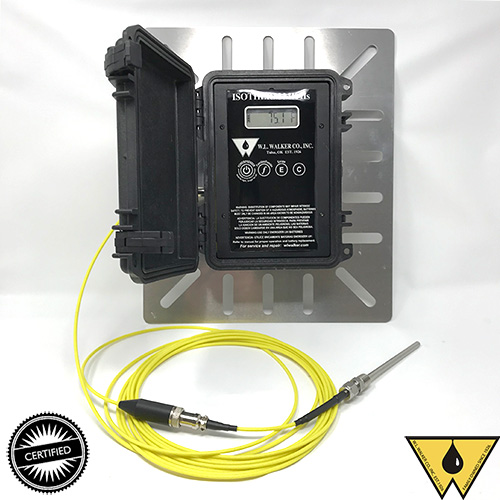

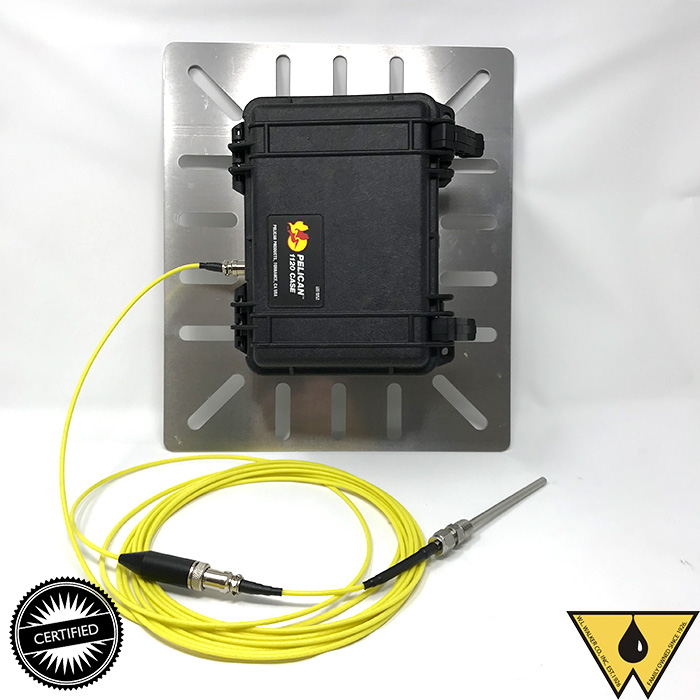

MKIIS in a Pelican 1120 case 1/4"rtd up to 20' lead

Code: 69201120

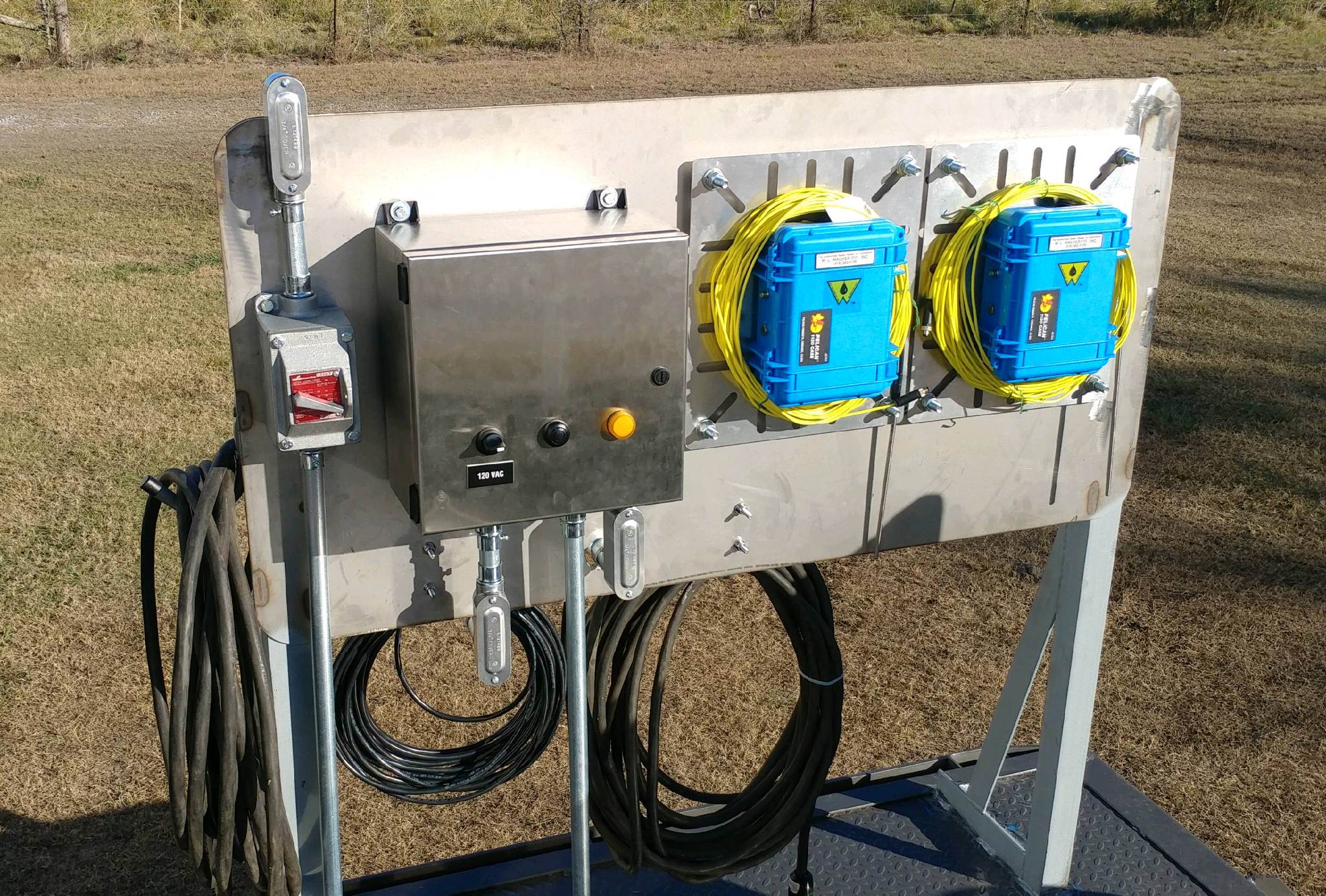

This unit has been designed to be built onto the side of a trailer for temperature measurement when following the 18.2 Alternative Gathering Methods, and complies with Chapter 7.

ISOTHERM MKIIs Digital Thermometer
FEATURES (various Software Versions Available);
- User selectable auto-off timer to save battery life
- Resolution of 0.1°
- Temperature range -40° to 400°F
- F to C switching
- Backlit LCD with indicating arrows indicating rate of change
- 4 Point calibration
- Cable up to 20' of customizable length (additional length available)
- Anodized coating for corrosion protection
- Highly durable recessed membrane switch faceplate
- Glow in the dark keypad
- Auto backlight upon power up function (Hold)
SPECIFICATIONS
Display: Amber backlit LCD with 0.45" characters with trend indication arrows and low battery and fault indication
Construction: Stainless steel temperature probe and sensor. Electronics and display in Pelican 1120 Case Highly durable display window, graphics and membrane switches.
Weight: Weight depends on cable length and probe style, 75' ¾ diameter probe unit 3.9 Lbs.
Temperature: Resolution to 0.1°
Calibrated Accuracy: +-0.080° F from 32° to 300° F +-0.048° C from 0° to 150° C
Time Constant: 7 seconds in circulated water bath Constant: (63.2% response to temperature change)
Sensor: 1000 Ohm, Class A Platinum RTD Immersion depth 4", 11cm
Battery: Energizer Ultimate Lithium L91 Intrinsically Safe Rated AA, Battery life (depending upon use) 25-150 hrs. Battery Operating Range: -40°C to 60°C (-40°F to 140°F)
12 Volt hard wired options available
TYPICAL APPLICATIONS: Custody transfer, temperature baths, reference, temperature calibration for flow meters, thermowells, provers, reference, distillations, melting point tests, and flash point tests.
Industries: Laboratory, Petroleum, Pipeline, Pharmaceutical, Food & many more.

US$1,045.69

US$993.41

EA (1)

Features

Features

Software Options:
Various software versions available for different application requirements
Auto-Off Timer:
User selectable auto-off timer to help extend battery life
Resolution:
Temperature resolution of 0.1°
Temperature Range:
Operating range from -40°F to 400°F
Temperature Units:
Easy switching between Fahrenheit and Celsius
Display:
Backlit LCD display with arrows indicating the rate of temperature change
Calibration:
Four point calibration capability for improved measurement accuracy
Cable Length:
Customizable cable length up to 20 feet with additional lengths available
Corrosion Protection:
Anodized coating provides enhanced corrosion resistance
Controls:
Highly durable recessed membrane switch faceplate
Keypad:
Glow in the dark keypad for improved visibility in low light environments
Backlight Function:
Automatic backlight activation upon power up using the hold function

Specifications

Specifications

Display:
Amber backlit LCD with 0.45" characters, trend indication arrows, and low battery and fault indicators
Construction:
Stainless steel temperature probe and sensor with electronics and display housed in a Pelican 1120 case with durable display window, graphics, and membrane switches
Weight:
Weight varies depending on cable length and probe style; 75' ¾" diameter probe unit weighs approximately 3.9 lbs
Temperature Resolution:
Resolution to 0.1°
Calibrated Accuracy:
±0.080°F from 32°F to 300°F and ±0.048°C from 0°C to 150°C
Time Constant:
7 seconds in circulated water bath (63.2% response to temperature change)
Sensor:
1000 Ohm Class A Platinum RTD with 4" (11 cm) immersion depth
Battery:
Energizer Ultimate Lithium L91 intrinsically safe rated AA battery with operating range of -40°C to 60°C (-40°F to 140°F) and typical life of 25–150 hours depending on use
Power Options:
12 Volt hard-wired power options available
Typical Applications:
Custody transfer, temperature baths, reference measurements, temperature calibration for flow meters, thermowells and provers, distillation testing, melting point tests, and flash point testing
Industries:
Laboratory, petroleum, pipeline, pharmaceutical, food processing, and other industrial environments
