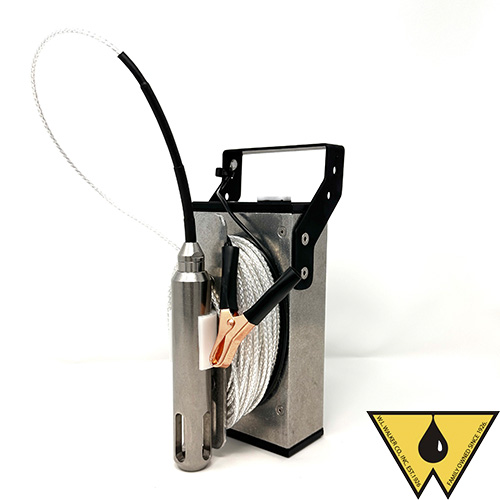

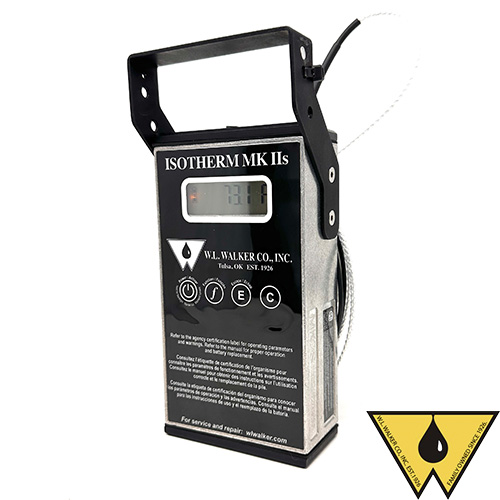

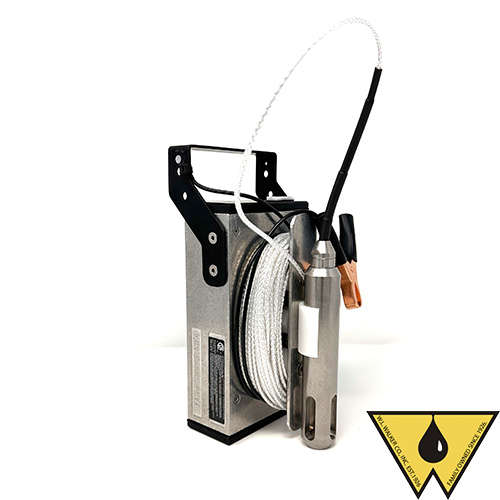

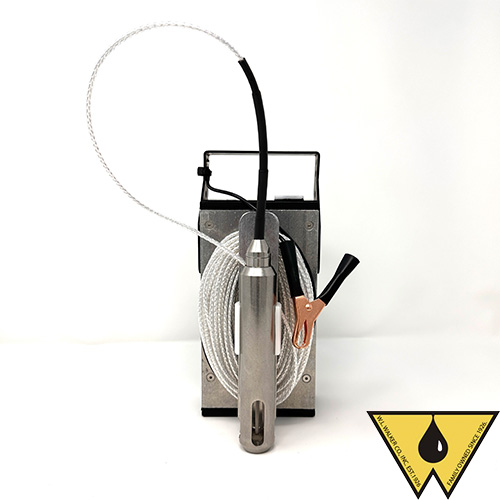

MK2S ISOTHERM 50' CSA APPR/HVY. PROBE

Code: 6920150HW

ISOTHERM MKIIs Digital Thermometer

TYPICAL APPLICATIONS: Custody transfer, temperature baths, reference, temperature calibration for flow meters, thermowells, provers, reference, distillations, melting point tests, and flash point tests.
Industries: Laboratory, Petroleum, Pipeline, Pharmaceutical, Food & many more.
Certifications: Intrinsically safe for use in Class I, Division I Groups A, B, C, & D. Class 1, Zone 0, Group IIC Hazardous Locations CSA C/US A/Ex ia IIC T4

US$1,358.32

US$1,263.24

EA (1)

Features

Features

Power Management:
User-configurable automatic shutoff timer to optimize battery life and field longevity
Measurement Resolution:
Selectable high-precision resolution of 0.1° or 0.01° for demanding applications
Temperature Range:
Wide operating range of −40°F to 400°F to accommodate diverse product conditions
Averaging Functions:
Integrated averaging mode with Auto-Sample functionality for stabilized, repeatable measurements
Units of Measure:
Selectable °F / °C units for operational flexibility
Display System:
High-visibility backlit LCD featuring directional trend indicators to monitor rate of temperature change
Calibration Capability:
Four-point calibration to ensure long-term measurement accuracy and compliance
Configuration Options:
Available in cable-connected probe configurations to meet varied field requirements
Construction:
Anodized aluminum housing providing superior corrosion resistance in harsh industrial environments
Weighted Design:
Engineered with enhanced mass to improve immersion and stability in heavier product applications
User Interface:
Recessed membrane switch panel with durable construction and glow-in-the-dark keypad for low-light operation
Backlight Control:
Automatic backlight activation on power-up with Hold functionality for convenient data capture

Specifications

Specifications

Display:
Amber backlit LCD with 0.45" characters, trend arrows, low-battery indication, and fault indication
Construction:
Stainless steel temperature probe and sensor. Electronics and display housed in a 4" × 2" × 7" anodized aluminum enclosure with durable display window, graphics, and membrane switches
Weight:
Dependent on cable length and probe style; typical 50 ft, ¾" diameter probe unit weighs approximately 3.9 lbs
Temperature Resolution:
0.01°
Calibrated Accuracy:
±0.080°F from 32°F to 300°F
±0.048°C from 0°C to 150°C
Time Constant:
7 seconds in circulated water bath (63.2% response to temperature change)
Sensor:
100 Ohm Class A platinum RTD; 4" (11 cm) immersion depth
Battery:
Energizer Ultimate Lithium L91 AA, intrinsically safe rated
Battery life (depending on use): 25–150 hours
Operating range: −40°C to 60°C (−40°F to 140°F)
Typical Applications:
Custody transfer, temperature baths, reference measurements, flow meter calibration, thermowells, provers, distillation, melting point testing, and flash point testing
Industries:
Laboratory, petroleum, pipeline, pharmaceutical, food, and related industrial environments
Certifications:
CSA Approved (C/US)
Intrinsically safe for use in Class I, Division I, Groups A, B, C, and D hazardous locations
Class I, Zone 0, Group IIC hazardous locations
CSA C/US • A/Ex ia IIC T4
