MK2S-ISOTHERM W/110' CABLE AND PROBE ASSEMBLY LIGHT OS

Code: 6920199L

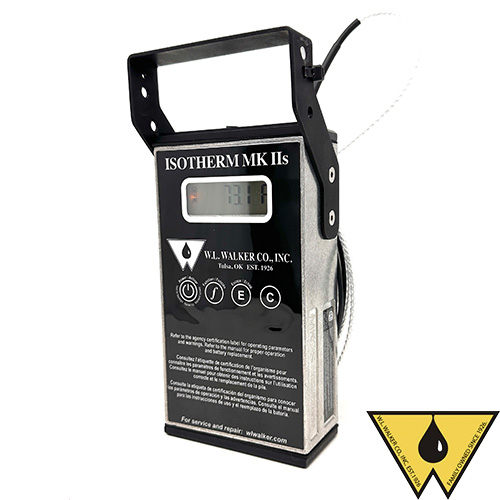

ISOTHERM MKIIs Digital Thermometer (with light operating system)

This unit has been designed in accordance with Chapter 7 Section 2 Third Edition, May 2018.
FEATURES
- User selectable auto-off timer to save battery life
- Resolution of 0.1°
- Temperature range -40 to 400 degrees F
- F to C switching
- Backlit LCD with indicating arrows indicating rate of change
- 4 Point calibration
- Anodized coating for corrosion protection
- Highly durable recessed membrane switch faceplate
- Glow in the dark keypad
- Auto backlight upon power up function (Hold)
SPECIFICATIONS
Display: Amber backlit LCD with 0.45" characters with trend indication arrows and low battery and fault indication
Construction: Stainless steel temperature probe and sensor. Electronics and display in 4" x 2" x 7" anodized Aluminum enclosure. Highly durable display window, graphics and membrane switches.
Weight: Weight depends on cable length and probe style, 75' ¾ diameter probe unit 3.9 Lbs
Temperature: Resolution to 0.1°
Calibrated Accuracy: +-0.080° F from 32° to 300° F +-0.048° C from 0° to 150° C
Time Constant: 7 seconds in circulated water bath Constant: (63.2% response to temperature change)
Sensor: 100 Ohm, Class A Platinum RTD Immersion depth 4", 11cm
Battery: Energizer Ultimate Lithium L91 Intrinsically Safe Rated AA, Battery life (depending upon use) 25-150 hrs Battery Operating Range: -40°C to 60°C (-40°F to 140°F)
TYPICAL APPLICATIONS: Custody transfer, temperature baths, reference, temperature calibration for flow meters, thermowells, provers, reference, distillations, melting point tests, and flash point tests.
Industries: Laboratory, Petroleum, Pipeline, Pharmaceutical, Food & many more.
Certifications: Intrinsically safe for use in Class I, Division I Groups A, B, C, & D. Class 1, Zone 0, Group IIC Hazardous Locations CSA C/US A/Ex ia IIC T4

US$1,358.65

US$1,263.54

EA (1)

Features

Features

Power Management:
User‑selectable auto‑off timer to help extend battery life.
Resolution:
0.1° resolution.
Temperature Range:
−40°F to 400°F.
Units:
User‑selectable °F / °C switching.
Display:
Backlit LCD with arrows indicating rate of temperature change.
Calibration:
Four‑point calibration capability.
Construction:
Anodized coating for corrosion protection.
Controls:
Highly durable recessed membrane switch faceplate.
Keypad:
Glow‑in‑the‑dark keypad.
Backlight Function:
Automatic backlight upon power‑up (Hold function).

Specifications

Specifications

Display:
Amber backlit LCD with 0.45" characters, trend indication arrows, and low battery and fault indicators.
Construction:
Stainless steel temperature probe and sensor. Electronics and display housed in a 4" × 2" × 7" anodized aluminum enclosure with durable display window, graphics, and membrane switches.
Weight:
Weight depends on cable length and probe style; 75 ft, 3/4" diameter probe unit weighs 3.9 lb.
Temperature Resolution:
Resolution to 0.1°.
Calibrated Accuracy:
±0.080°F from 32°F to 300°F; ±0.048°C from 0°C to 150°C.
Time Constant:
7 seconds in a circulated water bath (63.2% response to temperature change).
Sensor:
100 ohm, Class A platinum RTD with 4" (11 cm) immersion depth.
Battery:
Energizer Ultimate Lithium L91 intrinsically safe rated AA battery. Battery life (depending on use) 25–150 hours. Operating range −40°C to 60°C (−40°F to 140°F).
Typical Applications:
