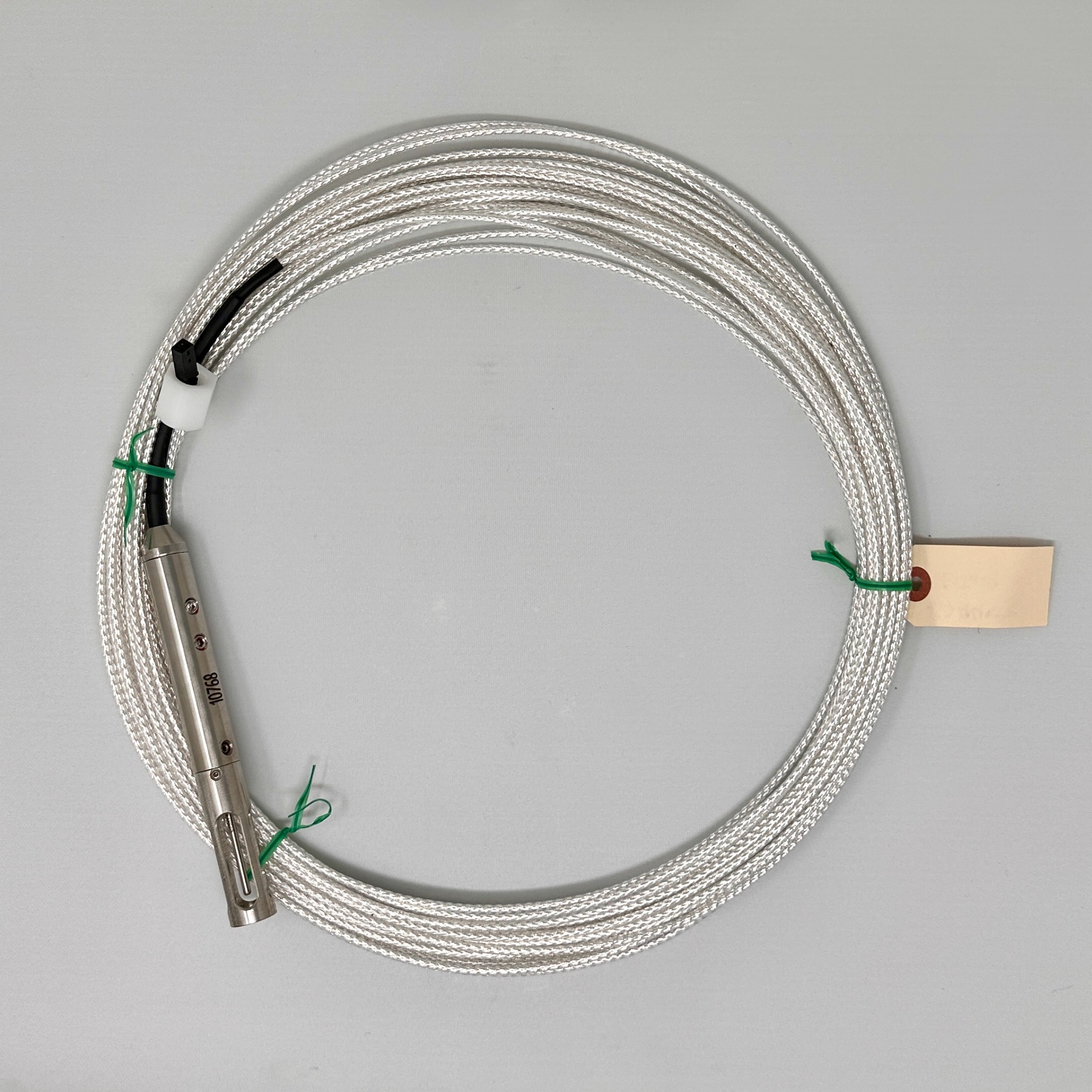

PROBE & CABLE ASSEMBLY 75' ALL TEMP

Code: 69219

This series of probe and cable assemblies is designed for use with the 69100 Mark II Series Digital Thermometers. They are designed so that the user can replace the probe and cable assembly in the field. The old assembly is easily removed by swinging the cable holder away after removing two screws. The connection for the cable is held firmly into the thermometer box by a threaded seal nut. (Left hand threads). Unscrew this, and pull out the connector inside. Then insert the new cable connector, tighten down the threaded seal nut, swing back the cable holder and replace screws. Unit should be re-calibrated per the Easy-Cal procedure (Please see the "Instruction" section of this web site for a video about the simple calibration process.)

US$395.51

US$348.05

EA (1)

Features

Features

Compatibility:
Designed for use with the 69100 Mark II Series Digital Thermometers.
Design:
This series of probe and cable assemblies is designed so the probe and cable assembly can be replaced in the field by the user.
Removal Procedure:
The existing assembly is removed by swinging the cable holder away after removing two screws. The cable connection is secured inside the thermometer housing by a threaded seal nut with left-hand threads.
Installation Procedure:
Unscrew the threaded seal nut, remove the internal connector, insert the new cable connector, tighten the seal nut, swing the cable holder back into position, and replace the screws.
Calibration:
After installation, the unit should be recalibrated using the Easy‑Cal procedure. Refer to the Instruction section of this website for a video demonstrating the calibration process.
