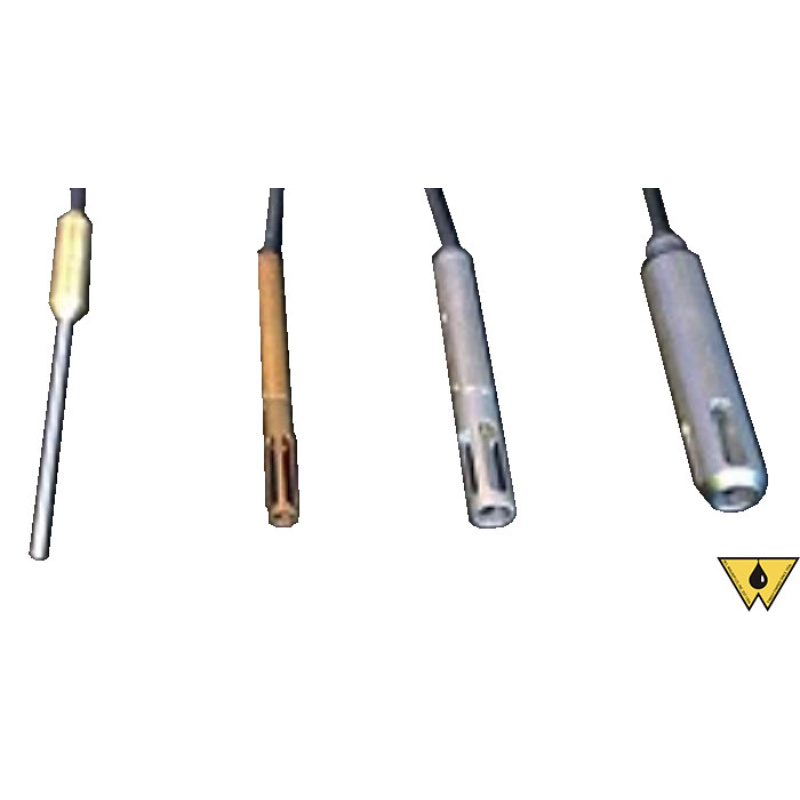

PROBE & CABLE ASSEMBLY FOR I-2000 1/2 " DIA. BRASS THIN LINE

Code: 69219I2KTL

For use with 69500 Series Reel Isotherms. Unroll the cable, open the wiper so that the old cable can slide through, remove the two screws at the end of the cable that are attached to the grounding position and the insulated post, and pull the old cable assembly out. Take the new cable assembly through the wiper system, attach the longer of the two wires to the insulated post and the shorter wire to the grounding position on the drum. Rewind the cable and re-calibrate the unit. For further information on calibrating the I-2000, please go to "Instructions" of this web site to watch a video on the calibration system using the 69550CAL tool.
US$395.51
EA (1)

Features

Features

Compatibility:
For use with 69500 Series Reel Isotherms.
Removal Procedure:
Unroll the cable and open the wiper so the old cable can slide through. Remove the two screws at the end of the cable attached to the grounding position and the insulated post, then pull the old cable assembly out.
Installation Procedure:
Feed the new cable assembly through the wiper system. Attach the longer wire to the insulated post and the shorter wire to the grounding position on the drum. Rewind the cable after installation.
Calibration:
After installation, re-calibrate the unit. For additional information on calibrating the I‑2000, refer to the Instructions section of this website to view the calibration video using the 69550CAL tool.
