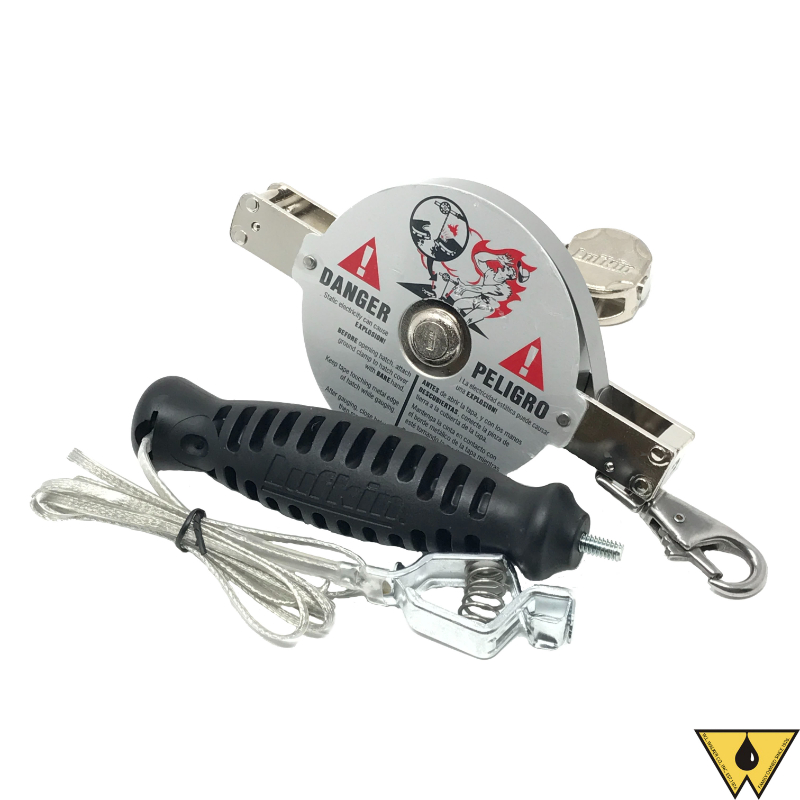

TAPE GAUGING DOUBLE DUTY OUTAGE F5871/2 50 FOOT (CN1293S)

Code: 44803

Tapes are the same as the image tapes except that the zero point on the outage tape is at the swivel hook. Used for outage measurement. Marked in feet, inches, and ⅛ths.

When using outage gauging tapes, the tape is lowered into the tank until the plumb bob just penetrates the liquid. The tape is then read at the reference point on the tank. The tape is rewound and the liquid level is read directly from the plumb bob. The reading on the plumb bob is off fed to the tape reading giving the total outage gauge

Please Log in to View Price

EA (1)

Specifications

Specifications

Description:
Tapes are the same as image tapes except the zero point on the outage tape is located at the swivel hook.
Use:
Designed for outage measurement applications.
Graduations:
Marked in feet, inches, and 1/8-inch increments.
Measurement Procedure:
Lower the tape into the tank until the plumb bob just penetrates the liquid, then read the tape at the reference point. Rewind the tape and read the liquid level directly from the plumb bob. Offset the plumb bob reading with the tape reading to obtain the total outage measurement.
