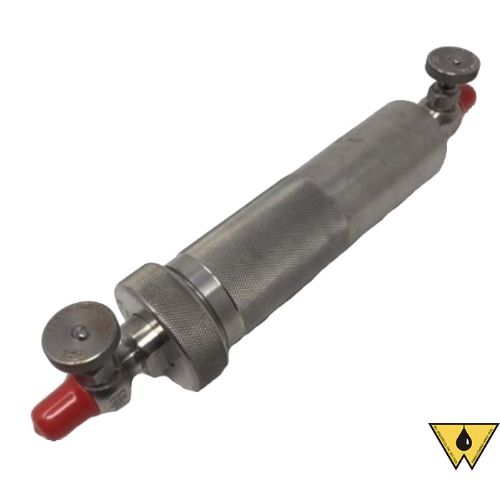

CYL COPPER STRIP COROSION TEST LPG, SS

Code: 12005

ASTM D1838 Compliant Pressure Vessel for LPG Corrosion Testing

This Copper Strip Corrosion Test Cylinder is a precision-manufactured vessel designed for use in ASTM D1838 testing, which evaluates the corrosiveness of liquefied petroleum gases (LPG) to copper. Constructed from smooth-finish stainless steel, the unit is ideal for laboratory environments where safety, repeatability, and corrosion resistance are critical.

The pressure seal is achieved using an O-ring and knurled nut system—tightening the nut by hand creates a secure seal without the need for tools. Each cylinder is pressure tested to 3000 psi to ensure reliable operation.

US$1,150.60

US$1,116.08

EA (1)

Features

Features

  • Purpose-built for ASTM D1838 copper strip corrosion testing

  • Made from high-quality stainless steel for corrosion resistance

  • Knurled nut + O-ring closure—no wrench required

  • Rated to 3000 psi and pressure tested for safety

  • Smooth internal finish for clean operation

  • Compatible with:

    • Copper strips (#12027)

    • ASTM comparison plaque (#1226904)

    • Filling hose (#12151)

    • ASTM thermometers (#55022 and #55023)

  • Ideal for use in refineries, fuel labs, terminals, and gas testing facilities

Specifications

Specifications

  • Material: Stainless steel

  • Closure: Knurled nut with O-ring seal

  • Pressure rating: Tested to 3000 psi

  • Operation: Tool-free sealing (no wrench required)

  • Note: Do not use brass, copper, or rubber tubing for test connections

  • Use only ASTM-compliant accessories and procedures
