SAMPLER (BACON BOMB) PENCIL TYPE, 4 OUNCE

Code: 40805

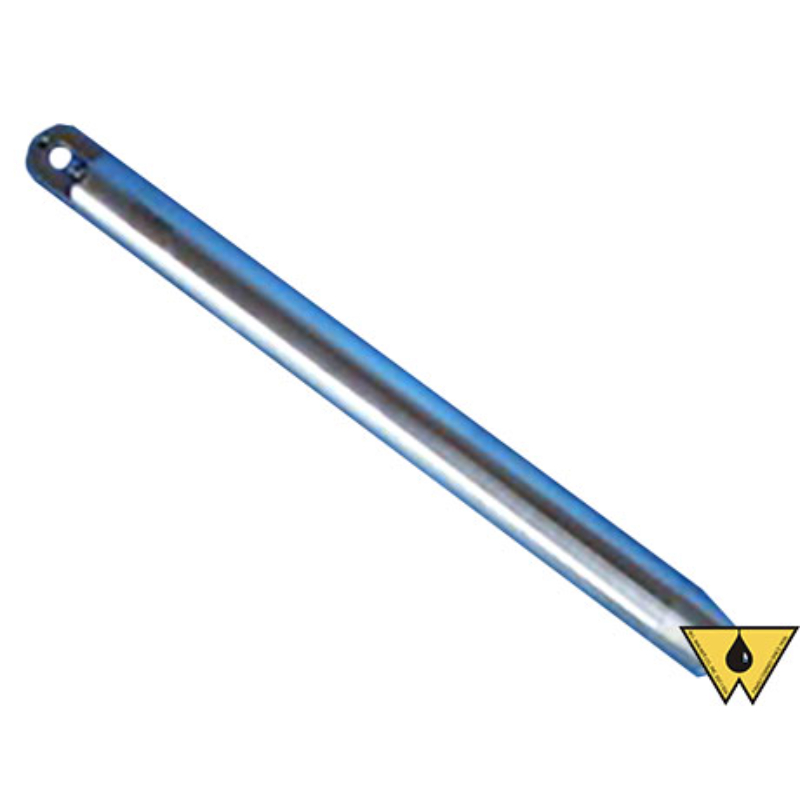

Oil Sampler – Pencil-Type Bacon Bomb, 4 oz (Code: 40805)
Slim-Profile Bottom Sampler for Tight Access Openings

The 4 oz. Pencil-Type Bacon Bomb Sampler (Code: 40805) is specifically designed for collecting bottom samples from storage tanks and vessels where access is limited to small-diameter openings. Its compact form factor—only 1 1/8" in diameter and 13 1/4" in length—makes it ideal for sampling through restricted entry points such as gauge hatches, vapor recovery ports, or narrow risers.

Functioning similarly to traditional bacon bomb samplers, this pencil-style version features a drop-weight trigger mechanism that releases the valve upon impact with the tank bottom, ensuring a true bottom sample. Constructed for rugged field use, it weighs approximately 2 pounds and is built to deliver reliable performance in oilfield and terminal applications.

US$480.62

US$442.17

EA (1)

Features

Features

Capacity:
4 oz. capacity for small-volume spot or bottom sampling
Diameter:
Slim 1 1/8" diameter ideal for use in narrow openings
Length:
13 1/4" overall length with compact, pencil-style design
Trigger Mechanism:
Drop-weight trigger activates on contact with tank bottom
Compatibility:
Compatible with standard gauging tapes or drop lines
Application:
Suitable for crude oil, refined products, and water-bottom detection
Industry Use:
Commonly used in tanks, drums, and storage vessels with limited access
Availability:
Larger capacities available upon request
