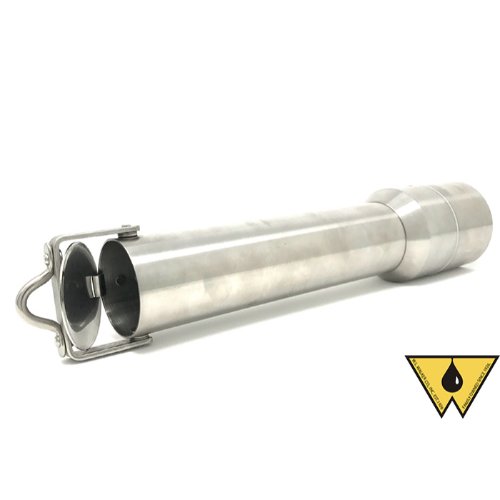

ZONE SAMPLER - STAINLESS STEEL WLW

Code: 40818

Targeted Liquid Sampling at Any Level

The WLW Stainless Steel Zone Sampler (Code: 40818) is designed for precise sampling at any depth within a storage tank or vessel. Unlike traditional bottom samplers, this unit allows operators to isolate and collect samples from specific product layers—ideal for verifying stratification, identifying interface zones, or conducting mid-level quality checks.

Made entirely of stainless steel, including the internal valve and alignment system, this sampler is built for durability in petroleum and chemical environments. A Teflon gasket provides a reliable seal during descent to prevent premature filling. Once retrieved, the sample is poured out from the top of the unit into a sample container for analysis.

US$410.43

US$357.07

EA (1)

Features

Features

Capacity:
800 mL capacity for standard lab sampling
Sampling Capability:
Designed to sample product at any level in the tank
Construction:
All stainless steel construction for maximum corrosion resistance
Valve System:
Internal stainless steel valve and guide system for consistent function
Gasket:
Teflon gasket ensures proper seal during descent
Dimensions:
3" diameter x 13" height (excluding bail)
Shipping Weight:
3.5 lbs.
Sample Discharge:
Sample is poured out from the top into a container after retrieval
Material Option:

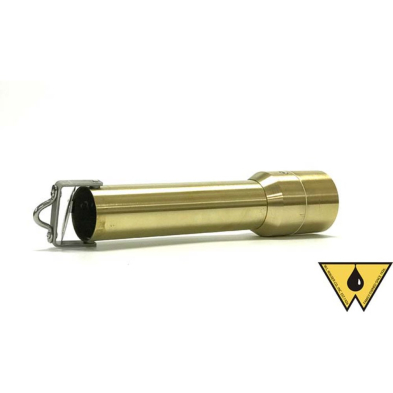

Also available in brass versions
Applications:
Ideal for use in terminals, refineries, and oilfield QA/QC applications
