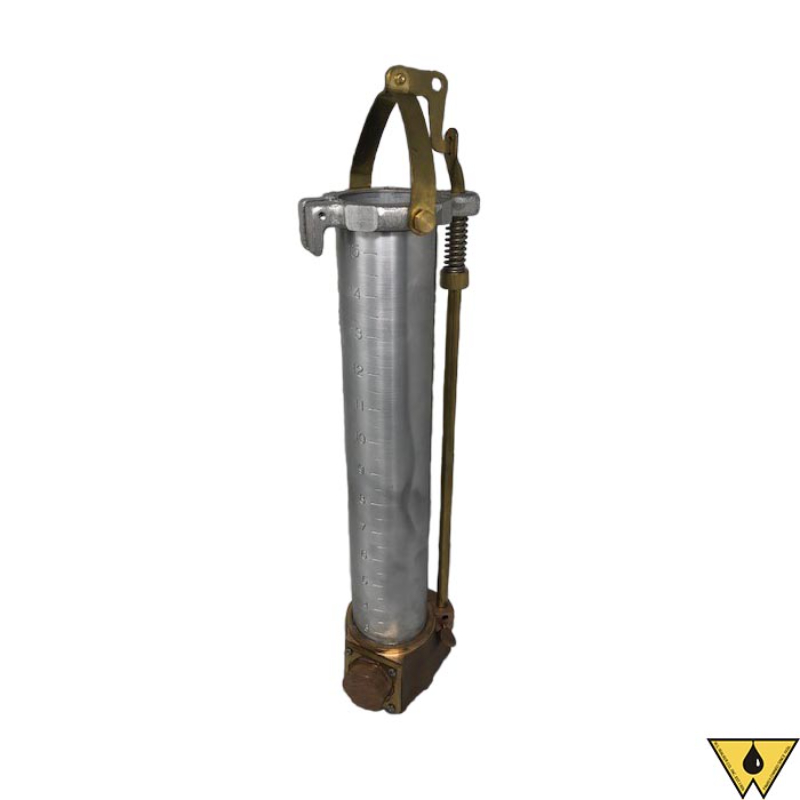

THIEF COMPACT ALUMINUM 16"

Code: 72001

The Thief Compact Clear Barrel is equipped with a clear plastic barrel, made to resist discoloration and cracking in oilfield use.

The 72000 series Tulsa Oil Thief has the following features: long proven simple bail assembly, handy hook on the top casting, all castings of non-sparking brass, adjustable tip spring, adjustable valve closer spring, simple o-ring seal on valve plate, no seal needed on valve pivot shaft. Sample may be obtained on bottom or desired level, adjustable graduated trip rod, four legs on bottom casting for even support, field repairable and rugged. Petcocks may be installed at any point except for near top or base castings. This Thief can be used in openings requiring a thin design.  This Thief has applications for sampling narrower (5" minimum) openings. This is achieved through a pivoting designed valve which opens upward at the base of the Thief.

Please Log in to View Price

EA (1)

Specifications

Specifications

Product Background:
The Tulsa Oil Thief™ has been one of the basic products of W. L. Walker Company since 1932.
Sampling Capability:
The Tulsa Oil Thief™ has a reputation in the oil industry for effective oil sampling at the bottom of the tank or at any level.
Available Models:
Manufactured in three models based on barrel material: aluminum, brass, and clear plastic.
Available Sizes:
Tulsa Oil Thiefs are available in five sizes.
Standard Features:
Single-trip design, antifouling flat bail assembly, full-opening horizontal closure system with rotating valve, two adjustable springs (one for closing tension and one for tripping tension), and a side hanger on the top casting for hanging on hatches or equipment cases.
