THIEF COMPACT CLEAR BARREL 16" ARMORED

Code: 72021

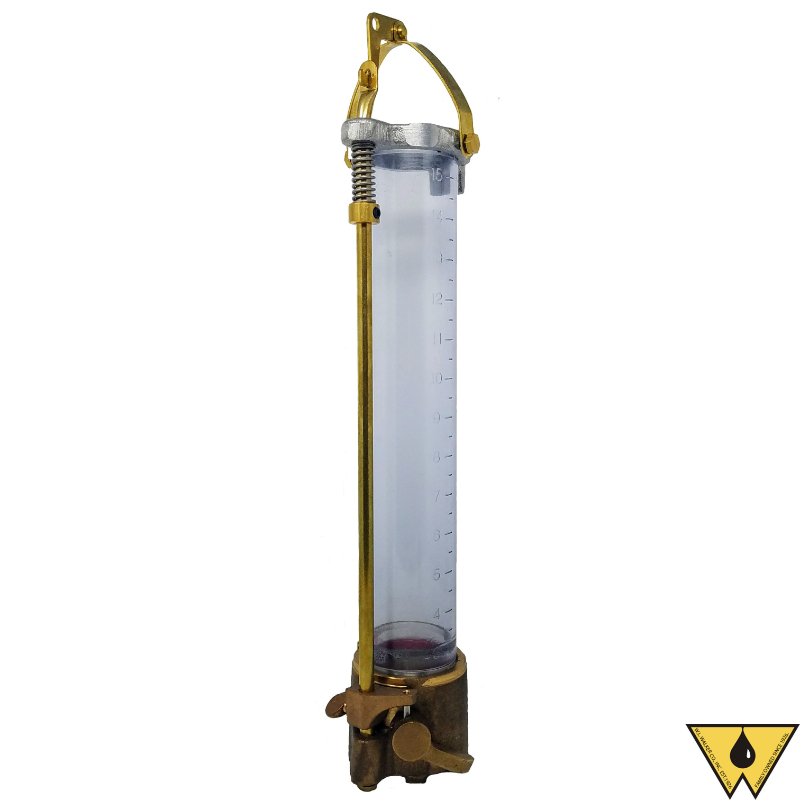

The Thief Compact Clear Barrel is equipped with a clear plastic barrel, made to resist discoloration and cracking in oilfield use.

The 72000 series Tulsa Oil Thief has the following features: long proven simple bail assembly, handy hook on the top casting, all castings of non-sparking brass, adjustable tip spring, adjustable valve closer spring, simple o-ring seal on valve plate, no seal needed on valve pivot shaft. Sample may be obtained on bottom or desired level, adjustable graduated trip rod, four legs on bottom casting for even support, field repairable and rugged. Petcocks may be installed at any point except for near top or base castings. This Thief can be used in openings requiring a thin design.  This Thief has applications for sampling narrower (5" minimum) openings. This is achieved through a pivoting designed valve which opens upward at the base of the Thief.

US$587.13

US$528.42

EA (1)

Features

Features

The Tulsa Oil Thief™ has been one of the basic products of W. L. Walker Company since 1932. The Thief has a reputation in the oil industry for effective oil sampling at the bottom of the tank or at any level. Tulsa Oil Thiefs are made in three models and in five sizes. These models are seperated by barrel material: Aluminum, Brass, and Clear Plastic. All theifs have single the following features: single trip, antifouling flat bail assembly, full opening horizontal closure system with rotating valve, two adjustable springs (one for closing tension, and one for tripping tension), side hanger on top casting for hanging on hatches or equipment cases. Petcocks may be installed at any point on any style thief, except for the top. We use a material for the clear plastic barrels that will not crack if the petcock strikes an object
