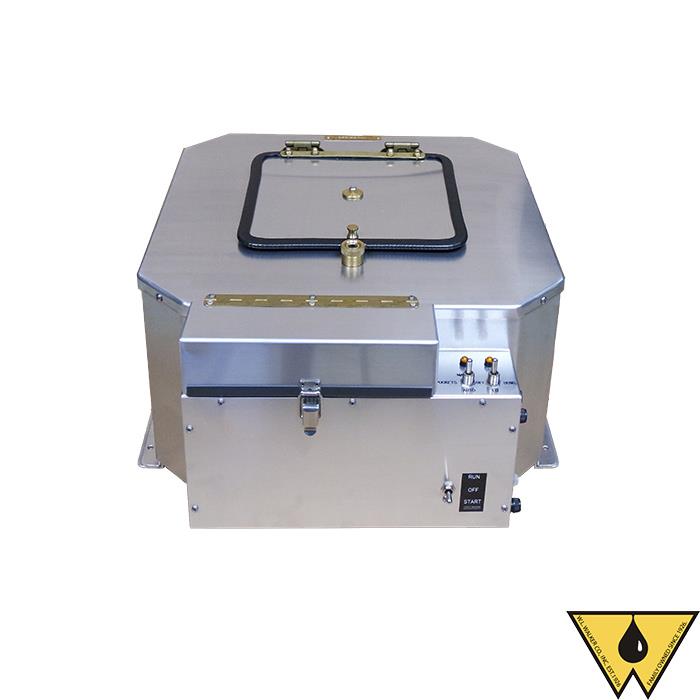

CENTRIFUGE 12 V ELECTRIC HEAT 4 PLACE FOR SHORT CONE TUBES

Code: 18724

For those interested in saving weight in their vehicles, this Centrifuge provides a 30-40lbs saving.

The unit is rugged, fully insulated and operates from the vehicles 12 Volt DC Electrical System. Thousands are in use throughout every climate of the North America.

The machine is 20" wide by 22.5" deep. It is 10.75" tall and 22" high with the lid open.

The total weight is 33LBS.

The 18700 series meets or exceeds the requirements of the API MPMS Chapter 10.4 "Determination of Water and Sediment in Crude Oil by Centrifuge (Field Method)

The manual for the 18700 Series Centrifuges is also posted on this website. (Under the Customer Support link at the top of the page.)

All major repairs can be done to this unit without taking it out of the vehicle. The motor comes out through the top of its housing. The electrical components are in the box on the front of the machine and the entire box can be replaced without taking it out of service. The heating pads are the only item requiring removal of the centrifuge.

Part # Description
18051 Motor, 12-Volt, 4-Posts
18055 Rheostat, 12-Volt (Legacy Units)
18075 Head, 4-Place Short Cone
18081 Shield, Short Cone
1808102 Plug for Short Cone Shield
1808104 Liner for Short Cone Shield
18054 Soft Start Switch 12 Volt

Please Log in to View Price

EA (1)

Features

Features

Product:
Walker Lightweight Centrifuge
Description:
Electric centrifuge designed for field use with reduced weight and durable construction.
Construction:
Fabricated sheet metal housing provides durability and heat retention while reducing unit weight by approximately 30–40 lb.
Serviceability:
Major components can be serviced without removing the unit from the vehicle.
Motor Access:
Motor removes vertically through the top housing.
Electrical Components:
Housed in a front-mounted box and replaceable as a complete unit.
Service Note:
Bowl heating pads require unit removal for service.
Standards:
Designed to meet or exceed API MPMS Chapter 10.4 requirements for field determination of water and sediment in crude oil by centrifuge.
Applications:
Suitable for field use, including installation in vehicles and operation in industrial environments.
``

Specifications

Specifications

Dimensions:
Width: 20"; Depth: 22.5"; Height (closed): 10.75"; Height (open): 22"
Weight:
33 lb
Power:
Operates on a 12V DC system.
Heating System:
Thermoswitch-controlled bowl heat with manual Hi/Low control.
Preheater Controls:
Thermoswitch and manual On/Off controls for preheater pockets.
Indicators:
Heater On indicator lamp.
Operating Temperature:
Interior temperature of 140°F ± 5° (60°C).
Sample Temperature:
Maintains sample temperature above 125°F (52°C).
Documentation:
Product manual available upon request.
