MK2S-ISOTHERM W/25' CABLE AND PROBE ASSEMBLY

Code: 6920125

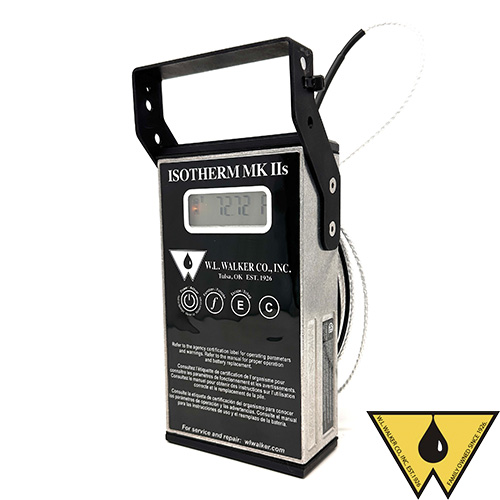

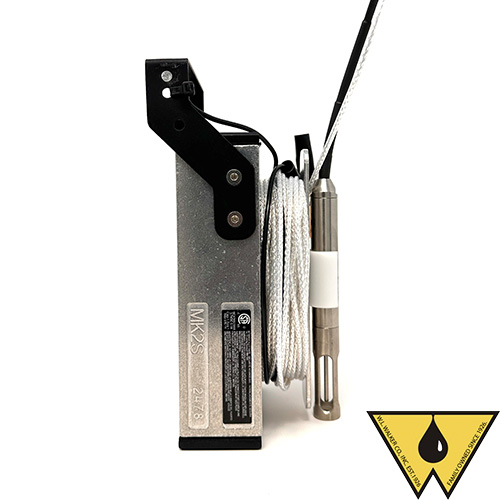

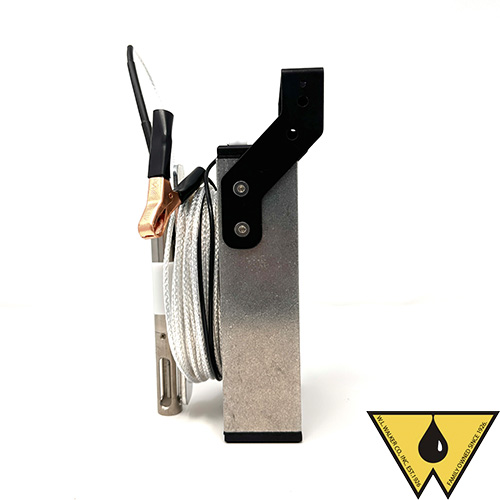

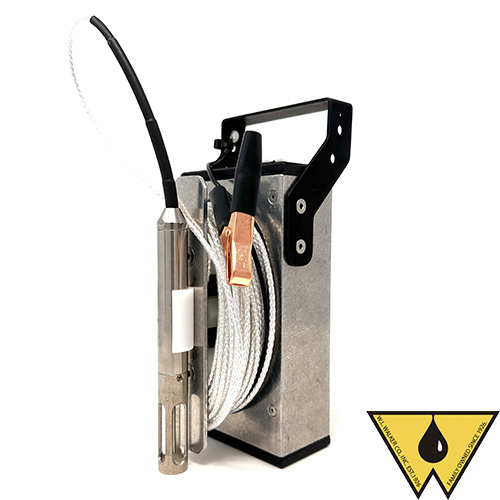

ISOTHERM MKIIs Digital Thermometer

TYPICAL APPLICATIONS: Custody transfer, temperature baths, reference, temperature calibration for flow meters, thermowells, provers, reference, distillations, melting point tests, and flash point tests.
Industries: Laboratory, Petroleum, Pipeline, Pharmaceutical, Food & many more.
Certifications: Intrinsically safe for use in Class I, Division I Groups A, B, C, & D. Class 1, Zone 0, Group IIC Hazardous Locations CSA C/US A/Ex ia IIC T4

US$1,179.64

US$1,097.07

EA (1)

Features

Features

Measurement Resolution:
0.1° or 0.01° selectable (Light OS and Full OS configurations available)
Temperature Range:
−40°F to 400°F
Calibration:
Multi-point calibration (up to 4-point)
Averaging Functions:
Averaging mode and Auto-Sample function with averaging capability
Data Logging:
USB data logging available (USB cable available upon request)
Display:
Backlit LCD with trend arrows indicating rate of temperature change
Keypad & Controls:
Glow-in-the-dark keypad with recessed, highly durable membrane switch faceplate
Backlight Control:
Automatic backlight on power-up with Hold function
Units:
Easy °F / °C unit switching
Battery Management:
User-selectable auto-off timer for extended battery life
Construction:
Corrosion-resistant anodized aluminum body
Configuration Options:
Cable-connected probe units available
Applications:
Custody transfer, temperature baths, reference measurements, flow meter calibration, thermowells, provers, distillation, melting point testing, and flash point testing
Industries Served:
Petroleum, pipeline, pharmaceutical, food, and laboratory environments
W.L. WALKER UNITS ARE BUILT FROM SPACE AGE ALLOYS THAT ENABLE OUR UNITS TO OUTLAST THE COMPETITION

Specifications

Specifications

Display:
Amber backlit LCD with 0.45" characters, featuring trend indication arrows, low battery indication, and fault indication
Construction:
Stainless steel temperature probe and sensor. Electronics and display housed in a 4" × 2" × 7" anodized aluminum enclosure with a highly durable display window, graphics, and membrane switches
Weight:
Weight depends on cable length and probe style; 25 ft, ¾" diameter probe unit weighs approximately 3.9 lbs
Temperature Resolution:
0.01°
Calibrated Accuracy:
±0.080°F from 32°F to 300°F; ±0.048°C from 0°C to 150°C
Time Constant:
7 seconds in a circulated water bath (63.2% response to temperature change)
Sensor:
1000 Ohm, Class A Platinum RTD; immersion depth 4" (11 cm)
Battery:
Energizer Ultimate Lithium L91 (intrinsically safe rated) or Duracell MN1500 AA. Battery life (depending on use): 25–150 hours. Operating range: −40°C to 60°C (−40°F to 140°F)
