MK2S-ISOTHERM W/50' CABLE AND PROBE ASSEMBLY

Code: 6920150

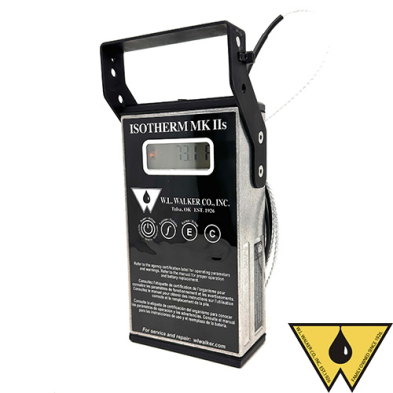

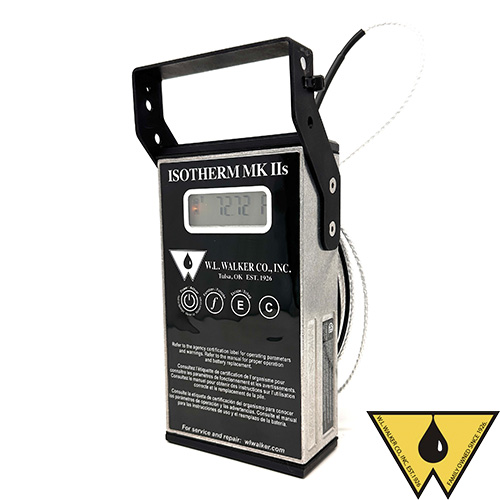

ISOTHERM MKIIs Digital Thermometer

ISOTHERM MKIIs Digital Thermometer
This unit has been designed in accordance with Chapter 7 Section 2 Third Edition, May 2018.
FEATURES
- User selectable auto-off timer to save battery life
- Resolution of 0.1 or .01
- Temperature range -40 to 400 degrees F
- Averaging function
- Auto-Sample function with average feature
- F to C switching
- Backlit LCD with indicating arrows indicating rate of change
- 4 Point calibration
- Cable units available
- Anodized coating for corrosion protection
- Highly durable recessed membrane switch faceplate
- Glow in the dark keypad
- Auto backlight upon power up function (Hold)
SPECIFICATIONS
Display: Amber backlit LCD with 0.45" characters with trend indication arrows and low battery and fault indication
Construction: Stainless steel temperature probe and sensor. Electronics and display in 4" x 2" x 7" anodized Aluminum enclosure. Highly durable display window, graphics and membrane switches.
Weight: Weight depends on cable length and probe style, 75' ¾ diameter probe unit 3.9 Lbs
Temperature: Resolution to 0.01 Degrees
Calibrated Accuracy: +-0.080° F from 32° to 300° F +-0.048° C from 0° to 150° C
Time Constant: 7 seconds in circulated water bath Constant: (63.2% response to temperature change)
Sensor: 100 Ohm, Class A Platinum RTD Immersion depth 4", 11cm
Battery: Energizer Ultimate Lithium L91 Intrinsically Safe Rated AA, Battery life (depending upon use) 25-150 hrs Battery Operating Range: -40°C to 60°C (-40°F to 140°F)
TYPICAL APPLICATIONS: Custody transfer, temperature baths, reference, temperature calibration for flow meters, thermowells, provers, reference, distillations, melting point tests, and flash point tests.
Industries: Laboratory, Petroleum, Pipeline, Pharmaceutical, Food & many more.
Certifications: Intrinsically safe for use in Class I, Division I Groups A, B, C, & D. Class 1, Zone 0, Group IIC Hazardous Locations CSA C/US A/Ex ia IIC T4

US$1,257.33

US$1,169.32

EA (1)

Features

Features

Power Management:
User-selectable auto-off timer to extend battery life
Measurement Resolution:
Selectable resolution of 0.1° or 0.01°
Temperature Range:
−40°F to 400°F
Averaging Functions:
Averaging mode with Auto-Sample function and averaging capability
Units:
Easy °F / °C unit switching
Display:
Backlit LCD with trend arrows indicating rate of temperature change
Calibration:
Four-point calibration capability
Configuration Options:
Cable-connected probe units available
Construction:
Anodized aluminum coating for enhanced corrosion resistance
User Interface:
Highly durable recessed membrane switch faceplate with glow-in-the-dark keypad
Backlight Control:
Automatic backlight on power-up with Hold function

Specifications

Specifications

Display:
Amber backlit LCD with 0.45" characters, trend arrows, low-battery indication, and fault indication
Construction:
Stainless steel temperature probe and sensor. Electronics and display housed in a 4" × 2" × 7" anodized aluminum enclosure with durable display window, graphics, and membrane switches
Weight:
Dependent on cable length and probe style; typical 50 ft, ¾" diameter probe unit weighs approximately 3.9 lbs
Temperature Resolution:
0.01°
Calibrated Accuracy:
±0.080°F from 32°F to 300°F
±0.048°C from 0°C to 150°C
Time Constant:
7 seconds in circulated water bath (63.2% response to temperature change)
Sensor:
100 Ohm Class A platinum RTD; 4" (11 cm) immersion depth
Battery:
Energizer Ultimate Lithium L91 AA, intrinsically safe rated
Battery life (depending on use): 25–150 hours
Operating range: −40°C to 60°C (−40°F to 140°F)
Typical Applications:
Custody transfer, temperature baths, reference measurements, flow meter calibration, thermowells, provers, distillation, melting point testing, and flash point testing
Industries:
Laboratory, petroleum, pipeline, pharmaceutical, food, and related industrial environments
Certifications:
Intrinsically safe for use in Class I, Division I, Groups A, B, C, and D
Class I, Zone 0, Group IIC hazardous locations
CSA C/US • A/Ex ia IIC T4
